Iridium 192 (Ir-192)

Sealed radioactive sources

Odoo • A picture with a caption

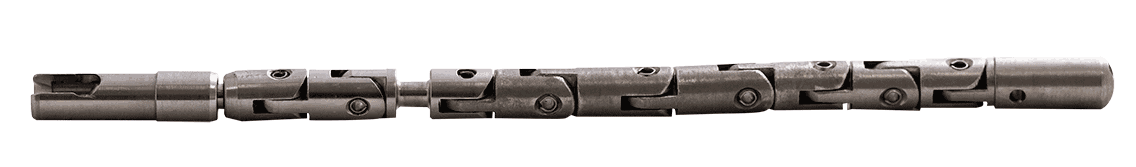

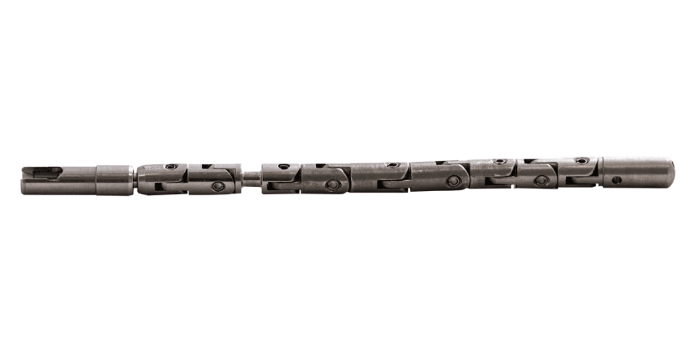

EXERTUS DUAL / NOVUM Source Holder

The primary use of Ir-192 sealed source is in gamma radiography. In comparison to other sealed sources used in similar applications, the film resolution produced with the use of Ir-192 provides exposure of high quality which is of critical importance in the field of non-destructive testing.

These Ir-192 capsules, made of stainless steel and containing high purity activated Iridium, are manufactured according to strict ISO classification and each source is welded and tested to comply with Special Form Certification, also fully accredited by the IAEA.

2-3

Delivery time in weeks

12-100

Steel working thickness in mm

74

Ir-192 Half-life in days

353

Gamma spectrum in keV

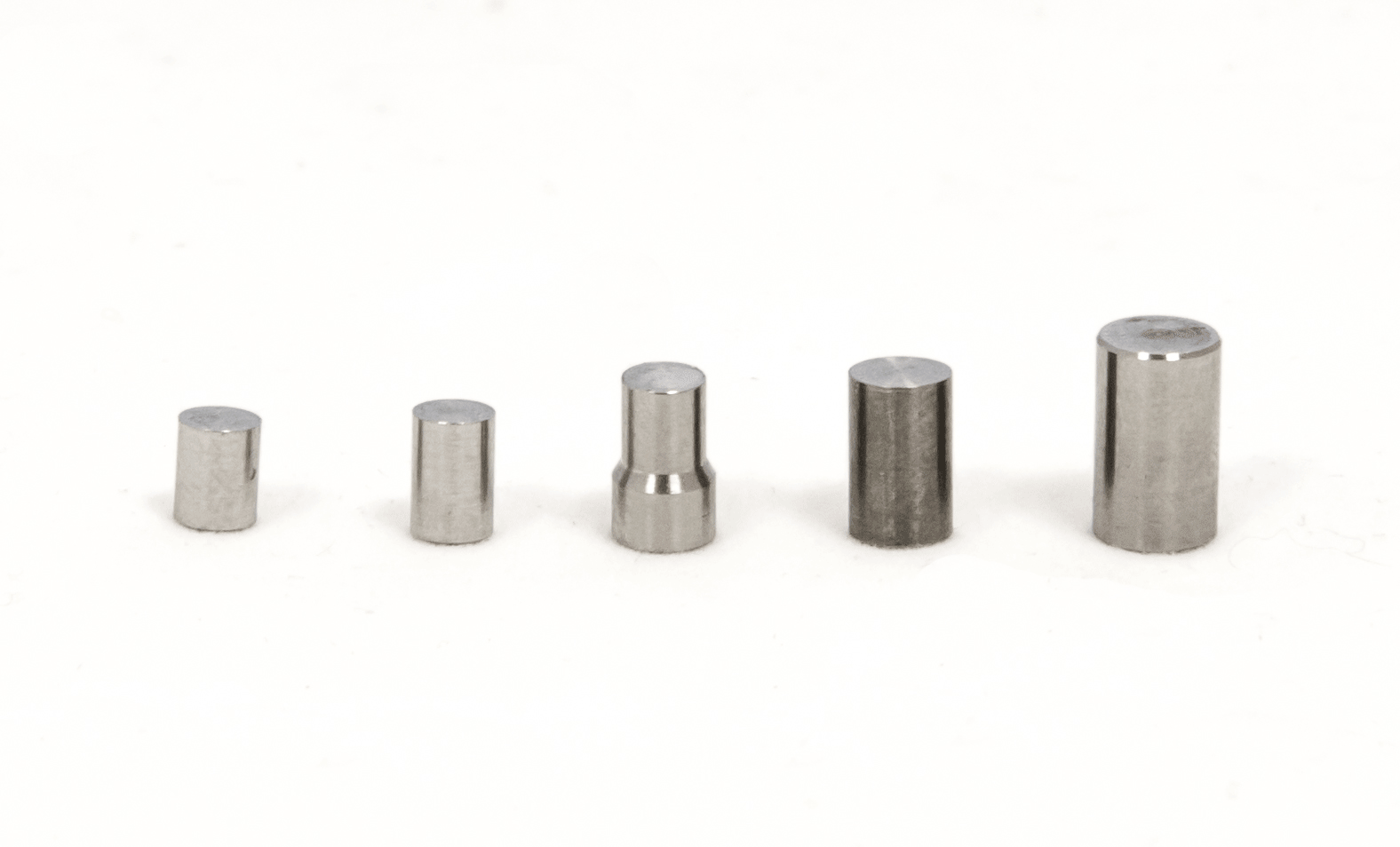

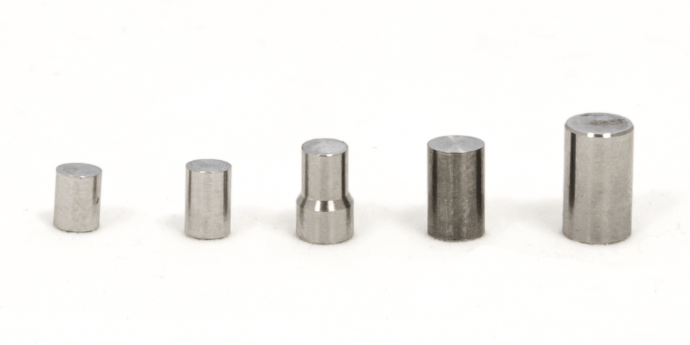

Ir -192 Capsule type
